• AMERICAN POWER CORPORATION APC SUA750RMI1U 750VA LINE INTERACTIVE RACK MOUNT 1U [P/N SUA750RMI1U]

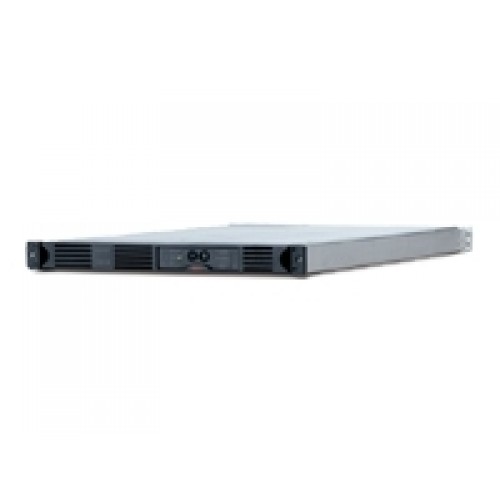

APC Smart-UPS 750VA USB RM 1U 230V

APC

APC Smart-UPS 750VA USB RM 1U 230V



APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs. With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (all major operating systems supported). Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS is a UPS you can count on.

Product DescriptionAPC Smart-UPS RM 750VA USB - UPS - 750 VA - UPS battery - Lead Acid
Device TypeUPS
Form FactorRack-mountable 1 U
Dimensions (WxDxH)48.3 cm x 66 cm x 4.4 cm
Weight21.8 kg
Input VoltageAC 230 V
Output VoltageAC 230 V
Power Provided750 VA
Output Connector(s)4 x power IEC 320 EN 60320 C13
BatteryUPS battery - Lead Acid
Run Time (Up To)7.1 min at full load
Manufacturer Warranty2 years warranty
Details

General
Device TypeUPS
Form FactorRack-mountable
Height (Rack Units)1 U
Width48.3 cm
Depth66 cm
Height4.4 cm
Weight21.8 kg
Enclosure ColourBlack
Expansion / Connectivity
Interfaces1 x management - USB - 4 PIN USB Type B
1 x management - RS-232 - 9 pin D-Sub (DB-9)
Expansion Slots Total (Free)1 ( 1 ) x SmartSlot
Manufacturer Warranty
Service & Support2 years warranty
Service & Support DetailsLimited warranty - 2 years
Miscellaneous
Cables Included1 x USB cable
1 x serial cable
Rack Mounting KitIncluded
FeaturesLED display, audible alarm
Compliant StandardsCE, C-Tick, GOST, PCBC, UL 1449, VDE
Software / System Requirements
Software IncludedDrivers & Utilities, APC PowerChute Smart-UPS Bundle
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Min Storage Temperature-15 °C
Max Storage Temperature45 °C
Humidity Range Operating0 - 95%
Humidity Range Storage0 - 95%
Battery
TypeUPS battery
TechnologyLead Acid
Run Time (Up To)7.1 min at full load
Power Device

UPS TechnologyLine interactive
Supported Battery TechnologyLead Acid
Input VoltageAC 230 V
Input Voltage RangeAC 160 - 286 V
Input Voltage Range (Adjustable)AC 151 - 302 V
Frequency Required50/60 Hz
Input Connector(s)1 x power IEC 320 EN 60320 C14
Output VoltageAC 230 V
Output Connector(s)4 x power IEC 320 EN 60320 C13
Power Provided750 VA
Output WaveformSinewave
Surge SuppressionStandard
Energy Rating480 Joules

Network Adapters
1093012APC - APC InfraStruXure Manager Server - Remote management adapter - EN, Fast EN (AP92200)
117393APC - APC SmartSlot Environmental Monitoring Card - Remote management adapter - SmartSlot (AP9612TH)
212540APC - APC SmartSlot Relay I/O Card - Remote management adapter - SmartSlot (AP9610)
511277APC - APC Remote Power-Off - Remote management adapter (AP9830)
133697APC - APC Out-of-Band Management Card - Remote management adapter - SmartSlot (AP9608)
724166APC - APC - Remote management adapter - EN, Fast EN - 10Base-T, 100Base-TX (AP9617)
817787APC - APC Network Management Card EM - Remote management adapter - EN, Fast EN - 10Base-T, 100Base-TX (AP9619)
899591APC - APC USB Conversion Kit - Serial adapter - USB - RS-232 (AP9584)
833429APC - APC Interface Expander - Remote management adapter - SmartSlot - 2 ports (AP9607CB)
817786APC - APC Network Management Card EM/MDM - Remote management adapter - EN, Fast EN - 10Base-T, 1000Base-TX (AP9618)
Applications
1092189APC - APC InfraStruXure Manager - Licence - 25 nodes - Win (AP9430)
411586APC - PowerChute Shutdown Utility for Oracle - ( v. 1.0 ) - complete package - 1 user - CD - Win (AP9013)
914223APC - PowerChute Business Edition Deluxe - Complete package - 25 devices - CD - Linux, UNIX, Win, NW (AP9411)
Port Expansion
121519APC - APC SmartSlot Expansion Chassis - System bus extender (AP9600)
System & Power Cables
1096694APC - APC - USB cable - 4 PIN USB Type A (AP9827)
328725APC - APC - Serial cable - DB-9 (M) - DB-9 (M) (940-0006)
881796APC - APC - Serial cable - DB-9 (F) - DB-9 (F) (AP9804)
757443APC - APC - Power cable - IEC 320 EN 60320 C14 (M) - IEC 320 EN 60320 C13 (F) - 2.4 m (AP9870)
753584APC - APC - Serial cable - DB-9 (M) - DB-9 (F) (940-0024)
- APC - Serial cable - DB-9 (M) - DB-9 (F) ()
454233APC - APC - Serial cable - DB-9 (M) - DB-25 (M) (940-0004)
212538APC - APC - Serial cable - DB-9 (M) - DB-9 (F) - 1.8 m (940-0020)
169278APC - APC - Serial cable - DB-9 (M) - DB-9 (F) (AP9823)
127693APC - APC - Serial extender - DB-9 (M) - DB-9 (F) - 4.6 m (AP9815)
System Service & Support
1060781APC - APC Extended Warranty - Extended service agreement - parts - 3 years - shipment - 8x5 - NBD (WEXTWAR3YR-SB-11)
712646APC - APC Extended Warranty - Extended service agreement - parts - 1 year - shipment - 8x5 - NBD (WEXTWAR1YR-SB-11)
