Smart-UPS RT is a family of high performance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but feature double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit.
Product Description
APC Smart-UPS RT 1000VA - UPS - 1000 VA - UPS battery - Lead Acid
Device Type
UPS
Form Factor
External 2 U
Dimensions (WxDxH)
43 cm x 48 cm x 9 cm
Weight
23 kg
Input Voltage
AC 220/230/240 V
Output Voltage
AC 220/230/240 V ± 5% ( 50/60 Hz )
Power Provided
1000 VA
Output Connector(s)
6 x power IEC 320 EN 60320 C13
Battery
UPS battery - Lead Acid
Battery Form Factor
Plug-in module
Run Time (Up To)
10.2 min at full load
Manufacturer Warranty
2 years warranty
Details
General
Device Type
UPS
Form Factor
External
Battery Enclosure Type
Plug-in module
Height (Rack Units)
2 U
Width
43 cm
Depth
48 cm
Height
9 cm
Weight
23 kg
Enclosure Colour
Black
Expansion / Connectivity
Interfaces
1 x management - RS-232 - 9 pin D-Sub (DB-9)
Expansion Slots Total (Free)
1 ( 1 ) x SmartSlot
Manufacturer Warranty
Service & Support
2 years warranty
Service & Support Details
Limited warranty - 2 years
Miscellaneous
Cables Included
1 x serial cable
Features
Audible alarm
Compliant Standards
CE, C-Tick, ISO 9001, GOST, EN 60950, EN 61000-3-2, PCBC, UL 1449, VDE, EN55022 Class A, ISO 14001
Software / System Requirements
Software Included
Drivers & Utilities, APC PowerChute plus, APC PowerChute Business Edition
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Min Storage Temperature
-20 °C
Max Storage Temperature
50 °C
Humidity Range Operating
0 - 95%
Humidity Range Storage
0 - 95%
Battery
Type
UPS battery
Technology
Lead Acid
Run Time (Up To)
10.2 min at full load
Recharge Time
3 hour(s)
Power Device
UPS Technology
On-line
Supported Battery Technology
Lead Acid
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 160 - 280 V
Input Voltage Range (Adjustable)
AC 100 - 280 V
Frequency Required
50/60 Hz
Input Connector(s)
1 x power IEC 320 EN 60320 C14
Output Voltage
AC 220/230/240 V ± 5% ( 50/60 Hz )
Output Connector(s)
6 x power IEC 320 EN 60320 C13
Power Provided
1000 VA
Output Waveform
Sinewave
Surge Suppression
Standard
Energy Rating
420 Joules
Circuit Protection
Circuit breaker
System Accessories
820883
APC - APC - Rack rail kit - grey - 19" (SURTRK)
UPS & Power Devices
820882
APC - APC BatteryPack - UPS battery Lead Acid (SURT48XLBP)

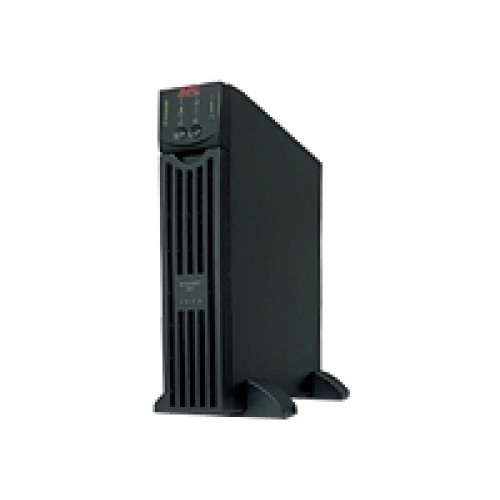

APC SURT1000XLI SMART-UPS RT, 1000VA, ON-LINE, EXTENDED-RUN, BLACK, RACK/TOWER CONVERTIBLE WITH POWERCHUTE BUSINESS EDITION SOFTWARE. [P/N SURT1000XLI]
