APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs. With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). Connectivity is through serial or USB port (USB not standard on all models). Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS is a UPS you can count on.
Product Description

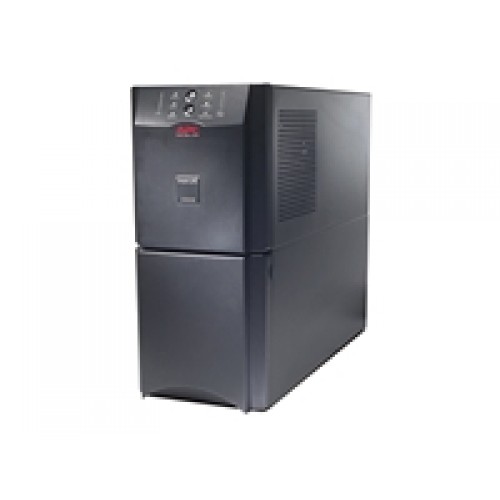

APC Smart-UPS 3000VA USB & Serial - UPS - 3000 VA - UPS battery - Lead Acid
Device Type
UPS
Form Factor
External
Dimensions (WxDxH)
20 cm x 55 cm x 43 cm
Weight
56 kg
Input Voltage
AC 230 V
Output Voltage
AC 230 V ± 5% ( 47 - 53 / 57-63 Hz )
Power Provided
3000 VA
Output Connector(s)
9 x power IEC 320 EN 60320 C13, power IEC 320 EN 60320 C19
Battery
UPS battery - Lead Acid
Run Time (Up To)
5.5 min at full load
Manufacturer Warranty
2 years warranty
Details
General
Device Type
UPS
Form Factor
External
Width
20 cm
Depth
55 cm
Height
43 cm
Weight
56 kg
Enclosure Colour
Black
Expansion / Connectivity
Interfaces
1 x management - RS-232 - 9 pin D-Sub (DB-9) 1 x management - USB - 4 PIN USB Type B
Expansion Slots Total (Free)
1 ( 1 ) x SmartSlot
Manufacturer Warranty
Service & Support
2 years warranty
Service & Support Details
Limited warranty - 2 years
Miscellaneous
Cables Included
1 x serial cable 1 x USB cable
Features
Emergency power off, LED display, audible alarm
Compliant Standards
CE, C-Tick, GOST, PCBC, UL 1449, VDE, EN 50091-2
Software / System Requirements
Software Included
Drivers & Utilities
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Battery
Type
UPS battery
Technology
Lead Acid
Run Time (Up To)
5.5 min at full load
Power Device
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 285 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Required
50/60 Hz
Input Connector(s)
1 x power IEC 320 EN 60320 C20
Output Voltage
AC 230 V ± 5% ( 47 - 53 / 57-63 Hz )
Output Connector(s)
9 x power IEC 320 EN 60320 C13, power IEC 320 EN 60320 C19
Power Output Connectors Details
8 x power IEC 320 EN 60320 C13 1 x power IEC 320 EN 60320 C19
