APC | |

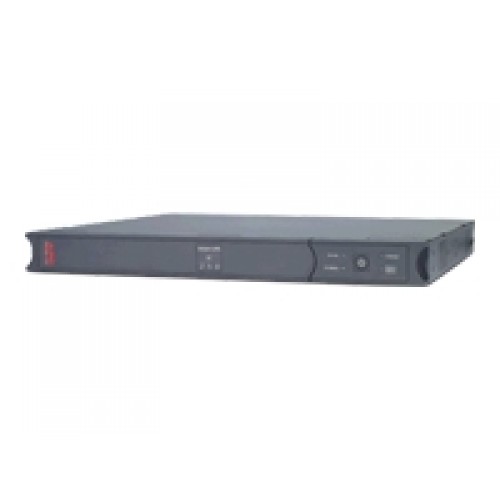

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower | |
APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with. | |
| Product Description | APC Smart-UPS SC 450VA - UPS - 450 VA - UPS battery - Lead Acid |
| Device Type | UPS |
| Form Factor | Rack-mountable 1 U |
| Dimensions (WxDxH) | 43.2 cm x 38.3 cm x 4.4 cm |
| Weight | 10.2 kg |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 5% ( 47 - 63 Hz ) |
| Power Provided | 450 VA |
| Output Connector(s) | 4 x power IEC 320 EN 60320 C13 |
| Battery | UPS battery - Lead Acid |
| Battery Form Factor | Plug-in module |
| Run Time (Up To) | 5.9 min at full load |
| Networking | Remote management adapter - RS-232 - integrated |
| Manufacturer Warranty | 2 years warranty |
| Details |
| General | |
| Device Type | UPS |
| Form Factor | Rack-mountable |
| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 1 U |
| Width | 43.2 cm |
| Depth | 38.3 cm |
| Height | 4.4 cm |
| Weight | 10.2 kg |
| Enclosure Colour | Grey |
| Expansion / Connectivity | |
| Interfaces | 1 x management - RS-232 - 9 pin D-Sub (DB-9) |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Networking | |
| Type | Remote management adapter - integrated |
| Data Link Protocol | RS-232 |
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LED display |
| Compliant Standards | CE, C-Tick, GOST, PCBC, VDE, EN 50091-2 |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
| Battery | |
| Type | UPS battery |
| Technology | Lead Acid |
| Run Time (Up To) | 5.9 min at full load |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 160 - 286 V |
| Input Voltage Range (Adjustable) | AC 151 - 302 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power IEC 320 EN 60320 C14 |
| Output Voltage | AC 230 V ± 5% ( 47 - 63 Hz ) |
| Output Connector(s) | 4 x power IEC 320 EN 60320 C13 |
| Power Provided | 450 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Suppression | Standard |
| Energy Rating | 320 Joules |
