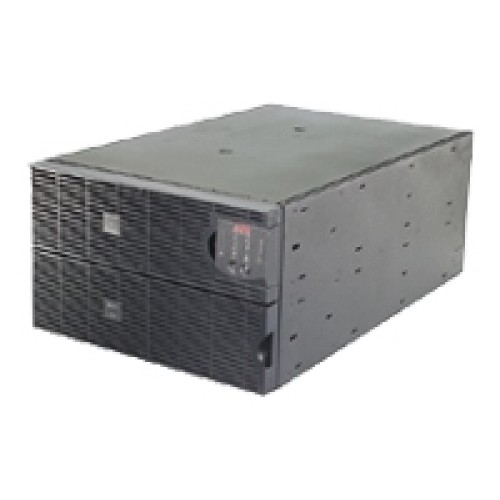

APC SURT7500RMXLI Smart-UPS RT 7500VA RM 230V

APC sets the standard in its industry for quality, innovation and support. Its comprehensive solutions, which are designed for both home and corporate environments, improve the manageability, availability and performance of sensitive electronic, network, communications and industrial equipment of all sizes. The mission of APC is to improve the manageability, availability, and performance of information and communication systems through rapid development and delivery of innovative solutions to real customer problems.

Product Description APC Smart-UPS RT 7500VA RM - UPS - 7500 VA - UPS battery - Lead Acid
Device Type UPS
Form Factor Rack-mountable 6 U
Dimensions (WxDxH) 43.3 cm x 66.5 cm x 26.5 cm
Weight 110.9 kg
Input Voltage AC 230 V
Output Voltage AC 230 V
Power Provided 7500 VA
Battery UPS battery - Lead Acid
Battery Form Factor Plug-in module
Average Run Time 7.1 min at full load
Networking Remote management adapter - Ethernet, Fast Ethernet - plug-in module
Remote Management Protocol SNMP
Manufacturer Warranty 2 years warranty

Details

General
Device Type UPS
Form Factor Rack-mountable
Battery Enclosure Type Plug-in module
Height (Rack Units) 6 U
Width 43.3 cm
Depth 66.5 cm
Height 26.5 cm
Weight 110.9 kg
Enclosure Colour Black
Expansion / Connectivity
Interfaces 1 x management - RS-232 - 25 pin D-Sub (DB-25)
1 x management - Ethernet 10Base-T/100Base-TX - RJ-45
Expansion Slots Total (Free) 1 ( 0 ) x SmartSlot
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Networking
Type Remote management adapter - plug-in module
Data Link Protocol Ethernet, Fast Ethernet
Remote Management Protocol SNMP
Miscellaneous
Cables Included 1 x serial cable
Compliant Standards FCC Class A certified, CSA, UL 1778
Features Emergency power off, audible alarm, Power Factor Correction (PFC)
Rack Mounting Kit Included
Software / System Requirements
Software Included Drivers & Utilities
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 - 95%
Min Storage Temperature -15 °C
Max Storage Temperature 45 °C
Battery
Type UPS battery
Technology Lead Acid
Average Run Time 7.1 min at full load
Power Device
UPS Technology On-line
Supported Battery Technology Lead Acid
Input Voltage AC 230 V
Input Voltage Range AC 160 - 280 V
Frequency Required 50/60 Hz
Output Voltage AC 230 V
Power Provided 7500 VA
Output Waveform Sinewave
Surge Suppression Standard
Surge Response Time 0 ns
Energy Rating 480 Joules
