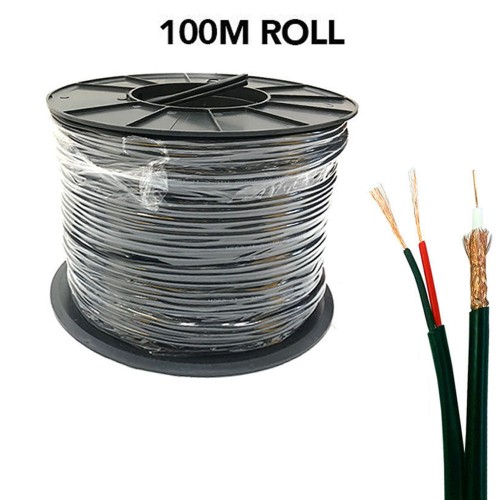

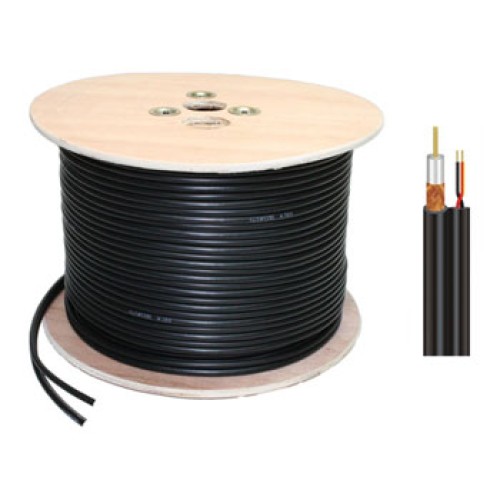

DATAPRO RG59 + 2 POWER SHOTGUN CCTV CABLE 100M ROLL [P/N 04DTP6675]

Features:

2 power wires are molded on to the outer of this RG59 coaxial cable, specially made for
transmission of signal & power to CCTV cameras & DVR recorders etc.
Make installation easier and more cost effective with this cable
This cable combines an RG59 video signal cable with a DC cable
Suitable for internal or external use
RG59 + 2 CORE
75 Ohm Coaxial Cable
Length: 100M
Cable Color: Black

Cable Construction:

Central conductor: 0.71mm Pure copper

Shield:

Braid: 0.12×16×8 CCA
Pitch 20mm
Nom. Dia. 4.14mm

Power Core:

2 × ( 7 / 0.35mm CCA + 1.80mm PE)
PE: Blue and Red

Jacket:

Black/white PVC
Diametre over Jacket : 6.1mm

Electrical Properties:

SPARKER TEST : 3000 VAC
DIELECTRIC STRENGTH: Conductor to Shield: 2000 VDC
CAPACITANCE: 50±3 pF./m Nom
IMPEDANCE: 75±5Ohms
VELOCITY OF PROPAGATION: 85% Nom.
SRL: 1 - 1000 MHz 20dB

Primary Package Contents:

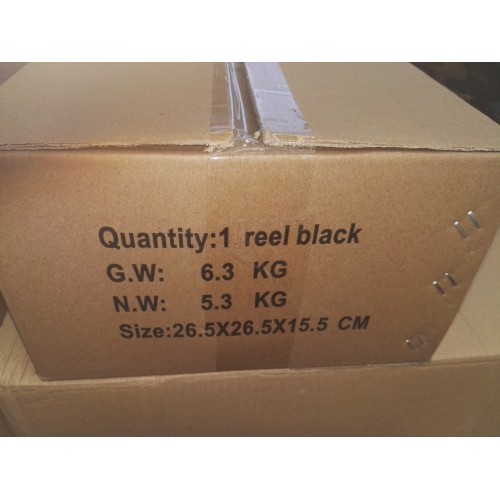

1 x 100 Meter Shotgun RG59 Video And 2 Power CCTV Cable in cardboard box.
